How to Connect a Car Audio System: A Beginner's Guide

This guide explains how to connect the main components of a basic car audio system, as shown in the diagram. The system includes a music player (head unit), an amplifier, speakers, a subwoofer, and a battery.

1. Understanding the Main Components

  • Music Player (Receiver): This is your car stereo or media receiver. It sends the audio signal and a control signal to the amplifier.

  • Amplifier (E400.4): This boosts the audio signal to power the speakers and subwoofer.

  • Speakers: These produce mid-range and high-frequency sounds.

  • Subwoofer: This produces low bass sounds.

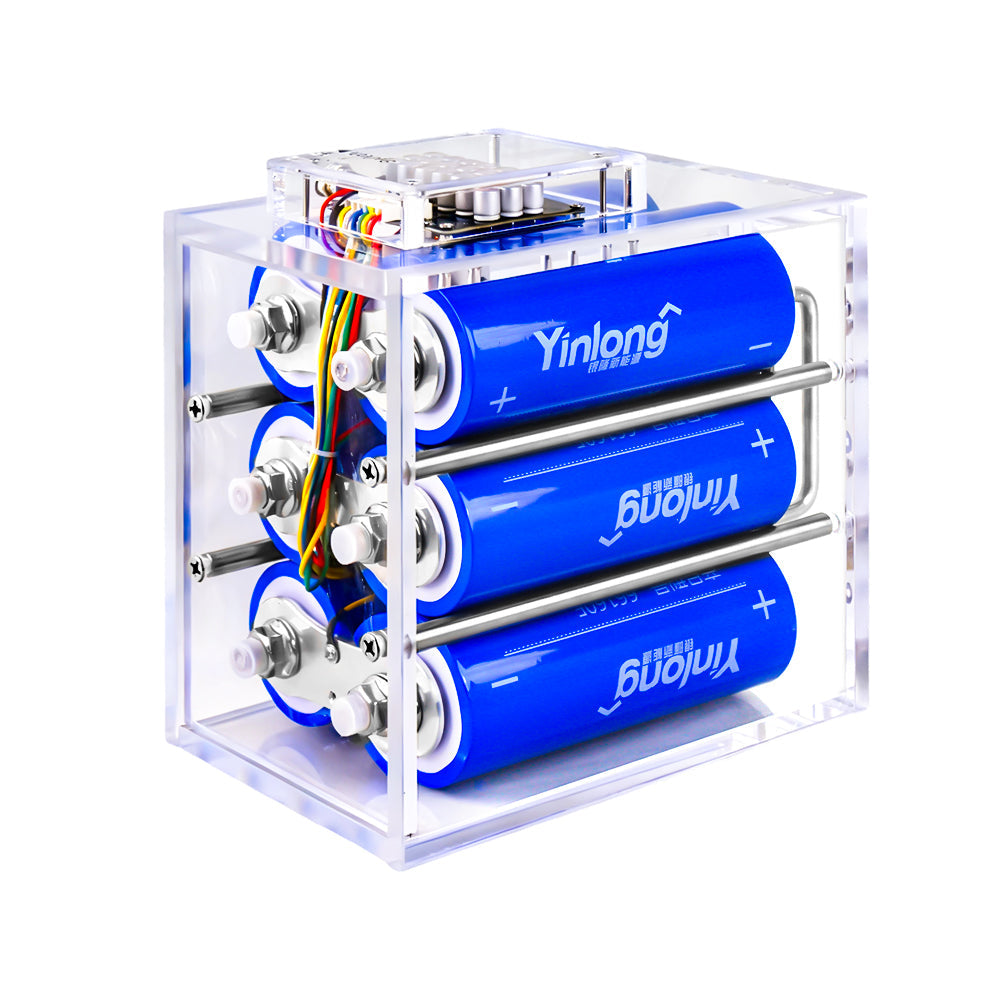

  • Battery: Provides power to the entire system.

2. Step-by-Step Connection Instructions

Step 1: Connect the Music Player to the Amplifier

  • Use a pair of RCA cables. Plug one end into the RCA output jacks on the back of the music player. Plug the other end into the RCA input jacks on the amplifier. This carries the audio signal.

Step 2: Run the Remote Turn-On Wire

  • Connect a thin wire from the Remote ON terminal of the music player to the Remote terminal on the amplifier. This tells the amplifier to turn on automatically when the music player is powered on.

Step 3: Connect the Amplifier to Power and Ground

  • Battery Connection: Run a thick power cable from the positive (+) terminal of the car battery to the Battery terminal on the amplifier. Place a fuse close to the battery end of this cable to protect the system.

  • Ground Connection: Connect a thick ground wire from the Chassis Ground terminal on the amplifier to a bare metal point on the car’s chassis. This completes the electrical circuit.

Step 4: Connect the Speakers and Subwoofer

  • Speakers: Connect speaker wires from the amplifier’s speaker output terminals to the Speakers. Make sure to match positive (+) and negative (-) terminals correctly.

  • Subwoofer: Similarly, connect the Subwoofer to the remaining amplifier channels, again paying attention to polarity.

3. Important Safety and Performance Tips

  • Always install a fuse on the power wire within 12 inches of the battery. This prevents fires in case of a short circuit.

  • Ensure the ground wire is securely attached to clean, bare metal for good electrical contact.

  • Use high-quality cables and secure all connections to avoid signal loss or noise.
