EU STOCK 3.2V CATL 314AH (on the way, about next week arrive to Poland warehouse.)

A new model shipped to Poland EU warehouse

400pcs shipped, limited stock, very good price, if you can wait it, you pay order and pay it now, after the cells arrived, we will arrange shipment at the first time.

Copper busbars and nuts both are included in the packages.

Tested and matched.

CATL 314AH Data

3.2V lifepo4 battery cell  314ah capacity

Typical Energy

1004.8 Wh

Operating voltage

2.5~3.65V

Impedance

0.18±0.05mΩ

Operating temperature (charging)

0~60°C

Operating temperature (discharge)

-20~60°C

Cell Weight

5.49±0.3Kg

Typical dimension （W*H*T）

(Width)：174.26±0.8mm Shoulder Height)： 204.44±0.8mm (Thickness)： 71.55±0.8mm

Cycle performance

7000 Cycles@70%SOH

Standard charge Power

0.5P

Standard charge voltage

Cell max voltage 3.65V

Standard discharge power

0.5P

Standard discharge temperature

25±2°C

Safety Precautions

1. Do not immerse cells into water.
2. Do not drop cells into fire or expose them to any high temperature environment exceeding operation temperature
   as set out in paragraphs 2.1.7、2.1.8&2.1.10, otherwise it may cause fire. At all use time, cell temperature should
   not exceed 60 °C, shut down system by BMS when it occurs.
3. Do not short circuit cell terminals, otherwise high current and temperature may cause body injury or fire hazards.
   Metallic cell terminals exposed from plastic packaging and ample safety precautions should be implemented to
   avoid short circuiting them during system integration or connections.
4. Always connect cell terminals according to its label(s) in right polarity. Reverse charging is strictly prohibited.
5. It is extremely dangerous to overcharge a cell which may cause overheating and fire hazards. Multiple level of
   fail-safe overcharge protection should be implemented by hardware and software. See paragraph 4.5.1、4.5.2、
   4.5.3、4.5.9 for minimum requirement to be adopted by the BMS for protection.
6. After charging according to article 4.5.9 of this technical agreement, normal charging shall be terminated. When
   the continuous charging time exceeds the reasonable time limit, the battery will overheat, which may cause
   thermal runaway and fire. A timer should be implemented in the charger circuit and set up properly.  In case
   charging does not terminate normally within charging time out limit, ensure that the timer will intervene and stop
   the charging. See also paragraph 5.11.
7. Products should be securely fixed to solid platform, and power cables should be securely attached by fastener to
   avoid intermittent contact which may cause arcing and sparks.
8. Do not service cells and electrical connections within plastic package of cell. Improper electrical connection
   within a cell may cause overheating in service.
9. When the electrolyte leaks, skin and eye contact with the electrolyte should be avoided. In case of contact, a large
   amount of clean water should be used to clean the contact area and seek help from the doctor. It is forbidden for
   any person or animal to swallow any part or substance contained in the battery.

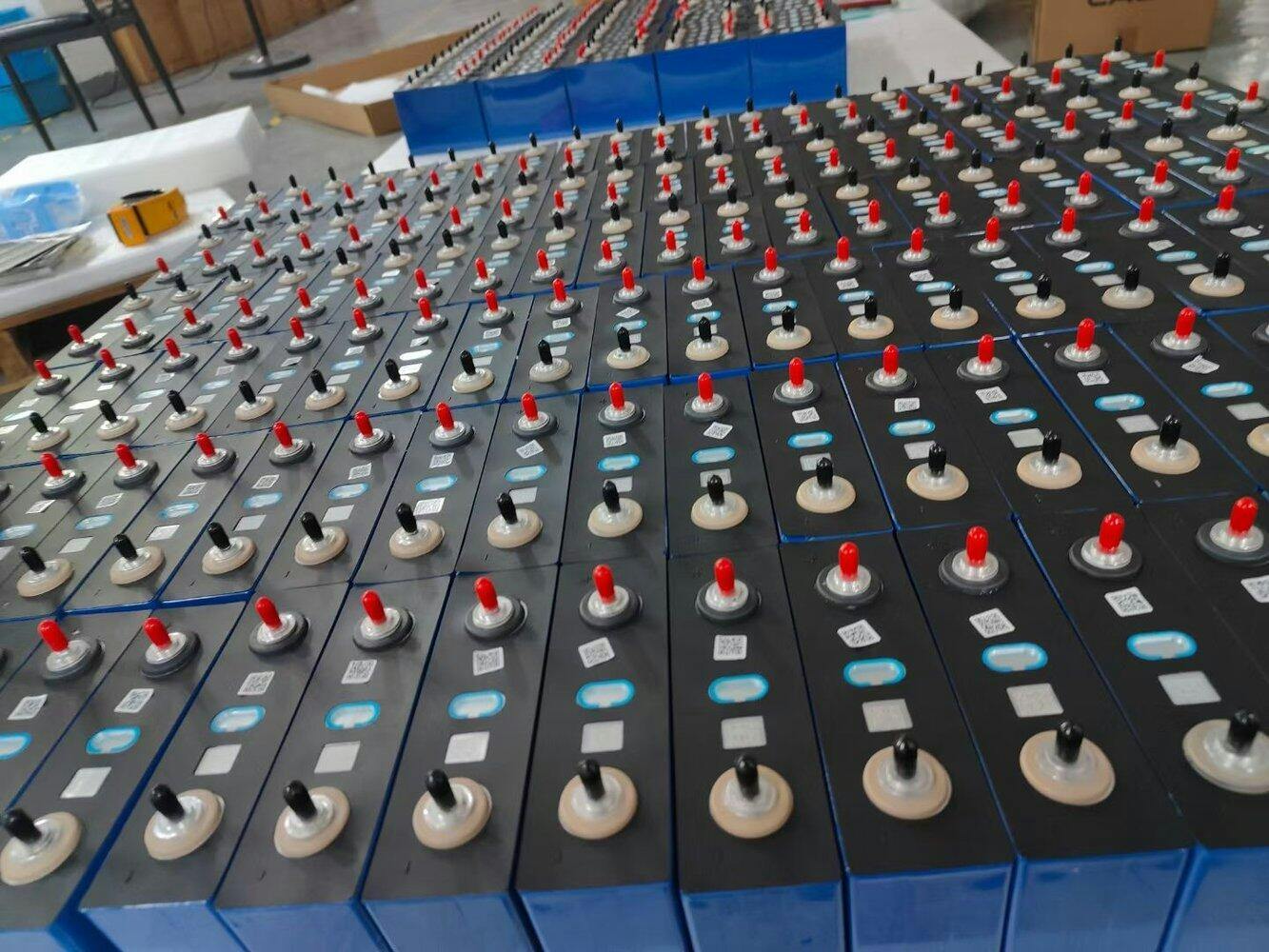

All of cells with a unique special sticker--ID.

There are many sellers selling same model cells, but based on different quality, who purchase our cells, any problems happened, customer just  show us the sticker, then we can know the cells from us and we can know when shipped out.

Then we will start warranty process, response for all of of customers.

Each cell packed with customize foam and sponge, copper busbars and insulation board all are included now.



EU stock for battery cells/battery pack and seplos or JK DIY Kits, all are available now.

If you have any questions or problems, pls contact us anytime.
