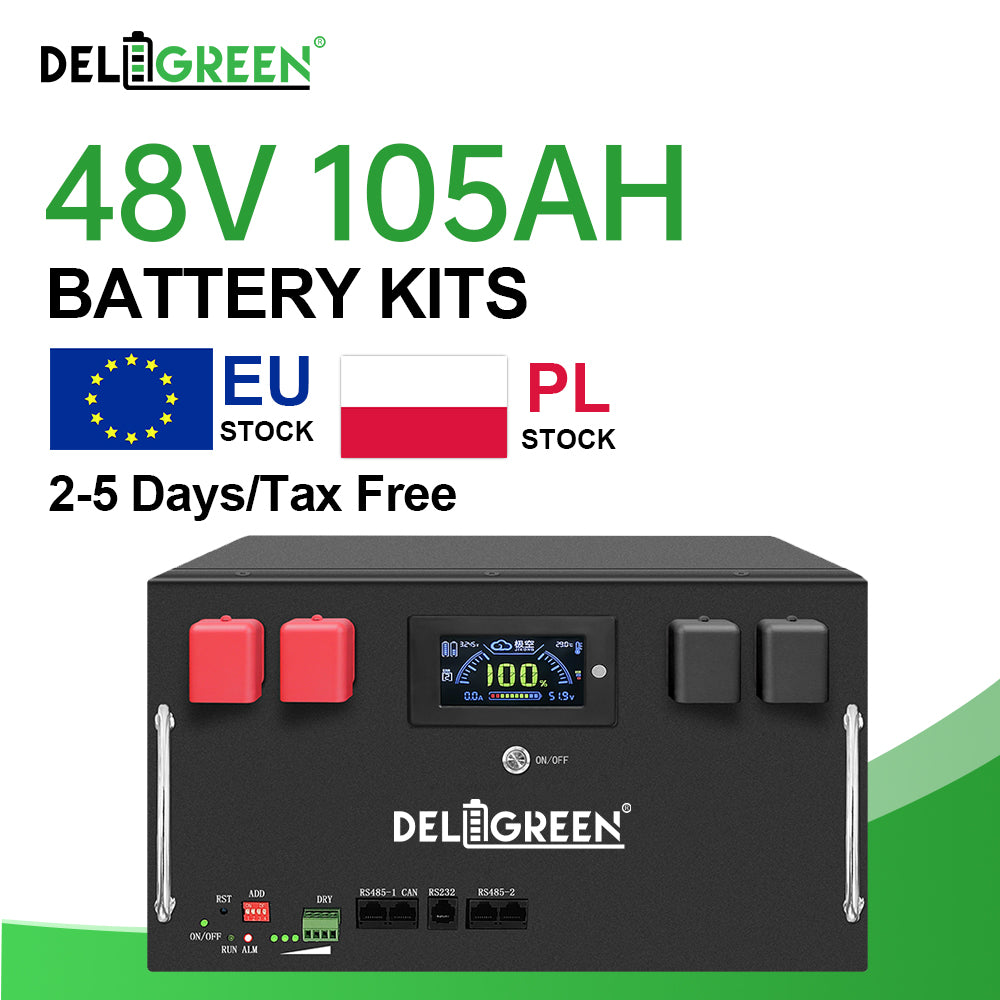

48V 105Ah LiFePO4 DIY Battery Kit
Build your own high-performance 48V lithium iron phosphate battery system with our precision-engineered DIY Kit — ideal for solar storage, RV, off-grid, and backup power applications.
Available Configuration
- 48V 105Ah (~5.0kWh usable)
Key Features
- Grade A Prismatic Cells — Top-tier LiFePO4 cells with ≥8,000 cycles @ 80% DoD for long-lasting, reliable performance

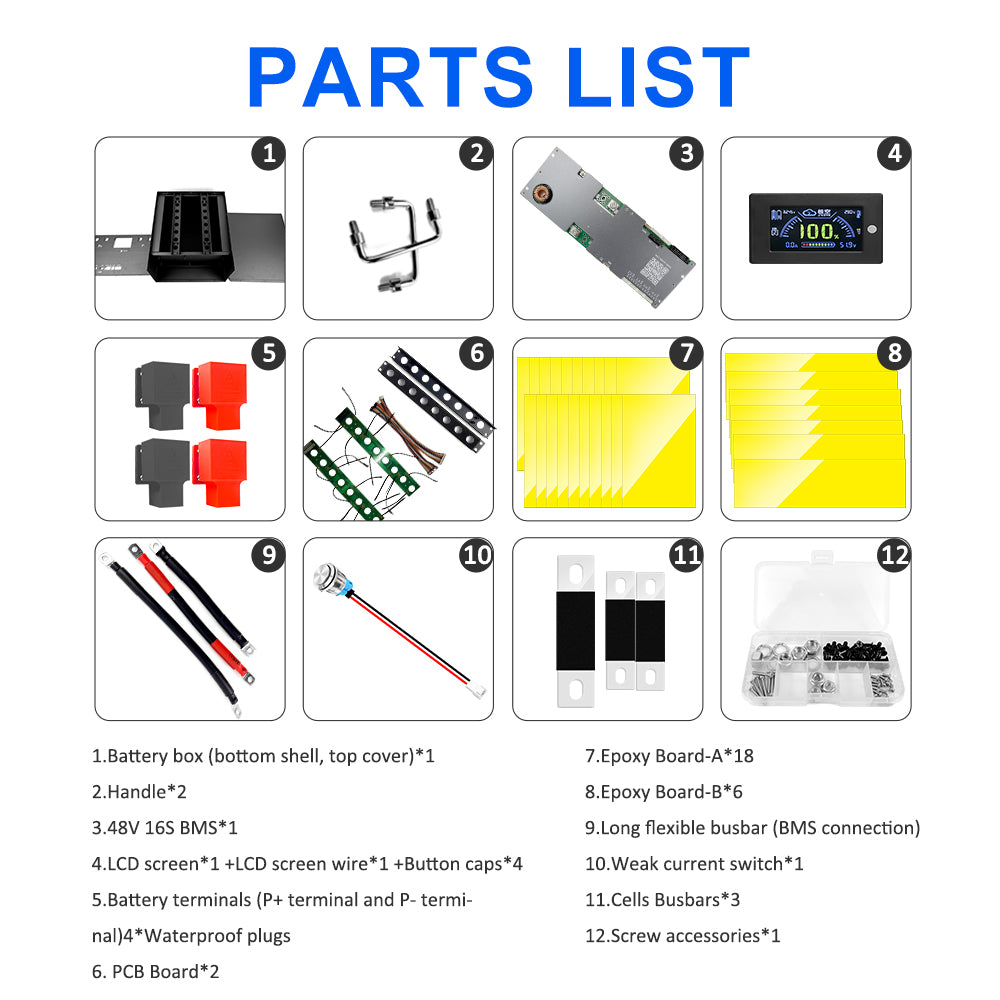

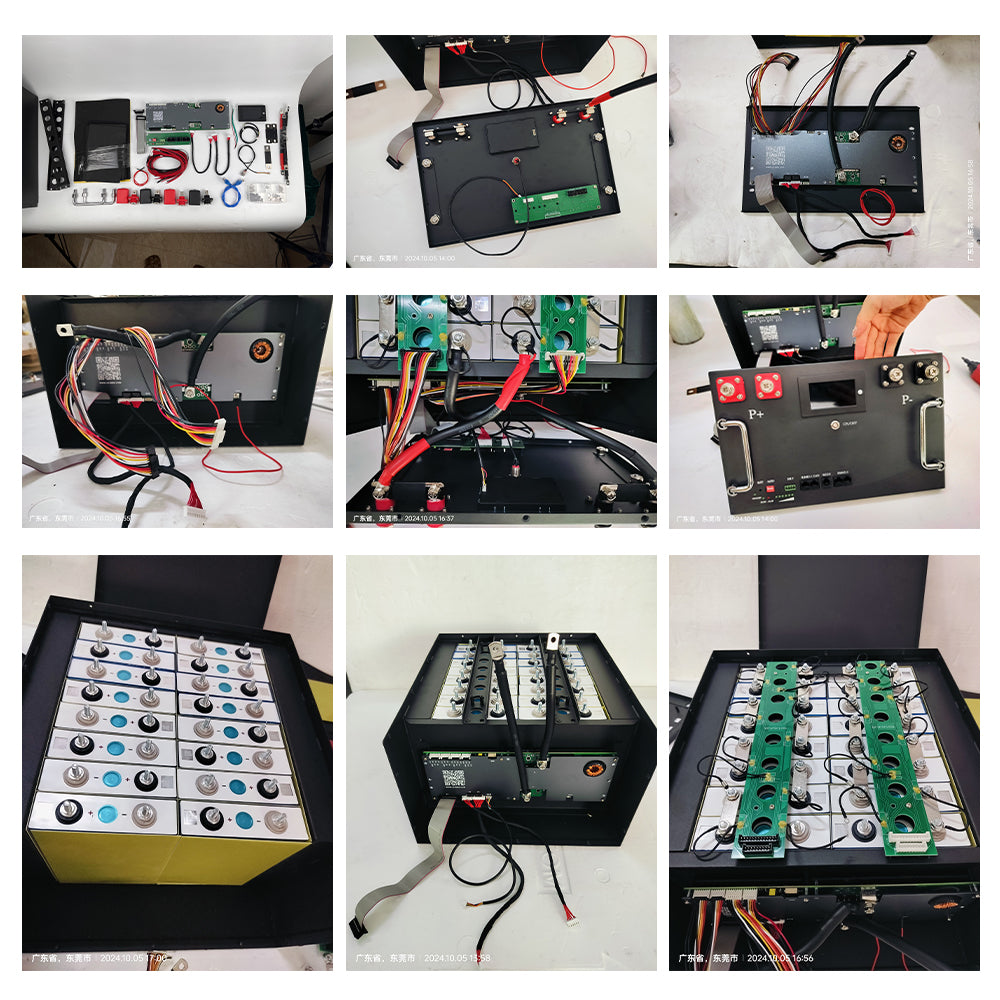

- Ready-to-Assemble Design — Pre-drilled enclosure with all mounting hardware included; no specialized tools required
- Smart BMS Compatible — Engineered to fit a 16S smart BMS with overcharge, over-discharge, short-circuit, and temperature protection
- Modular & Expandable — Connect in parallel to scale capacity; compatible with most 48V off-grid and hybrid inverter systems
- Robust Enclosure — Heavy-duty ABS/metal housing with ventilation slots and secure terminal access
- Wide System Compatibility — Works with Growatt, Deye, Victron, SolarEdge, and other major 48V inverter brands supporting LiFePO4 chemistry
Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2V (16S LiFePO4) |
| Capacity | 105Ah |
| Usable Energy | ~5.0kWh (@ 80% DoD) |
| Cell Configuration | 16S1P |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | ≥3,000 cycles @ 80% DoD |
| Max Charge Voltage | 58.4V |
| Min Discharge Voltage | 44.8V |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -10°C to 45°C |
Applications
Off-grid solar systems · RV & camper van builds · Marine energy storage · Home backup power · Telecom & industrial UPS
