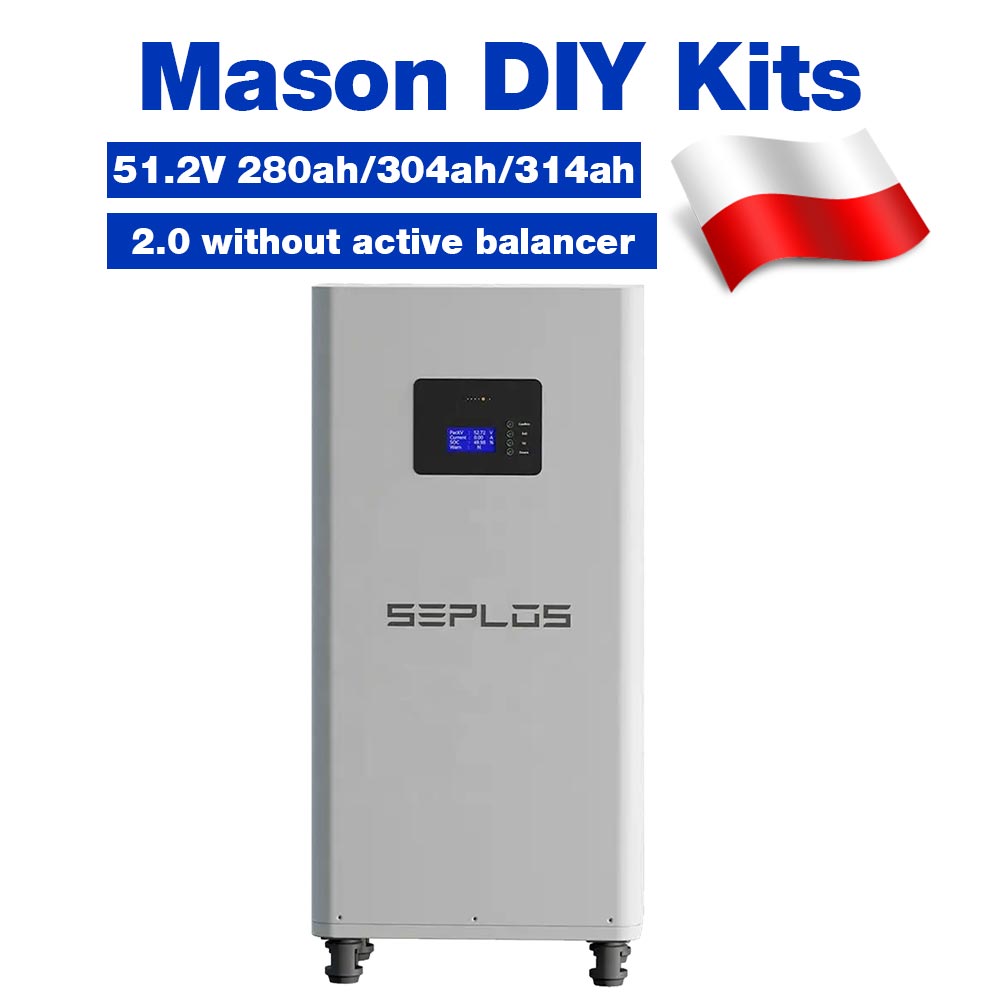

SEPLOS 3.0 48V 51.2V 280ah/304ah/314ah/320ah MASON DIY battery Kits, excluded battery
SEPLOS 3.0 48V 51.2V 280ah/304ah/314ah/320ah MASON DIY battery Kits, excluded battery
Couldn't load pickup availability
Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock

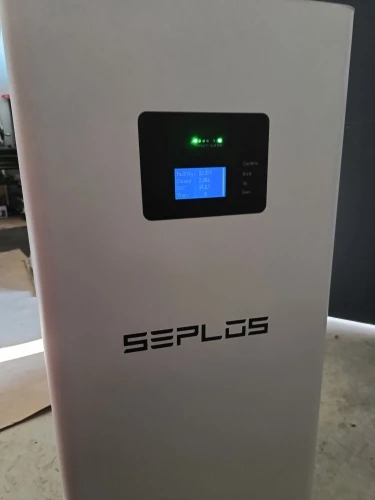

1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
Customer installation feedback:

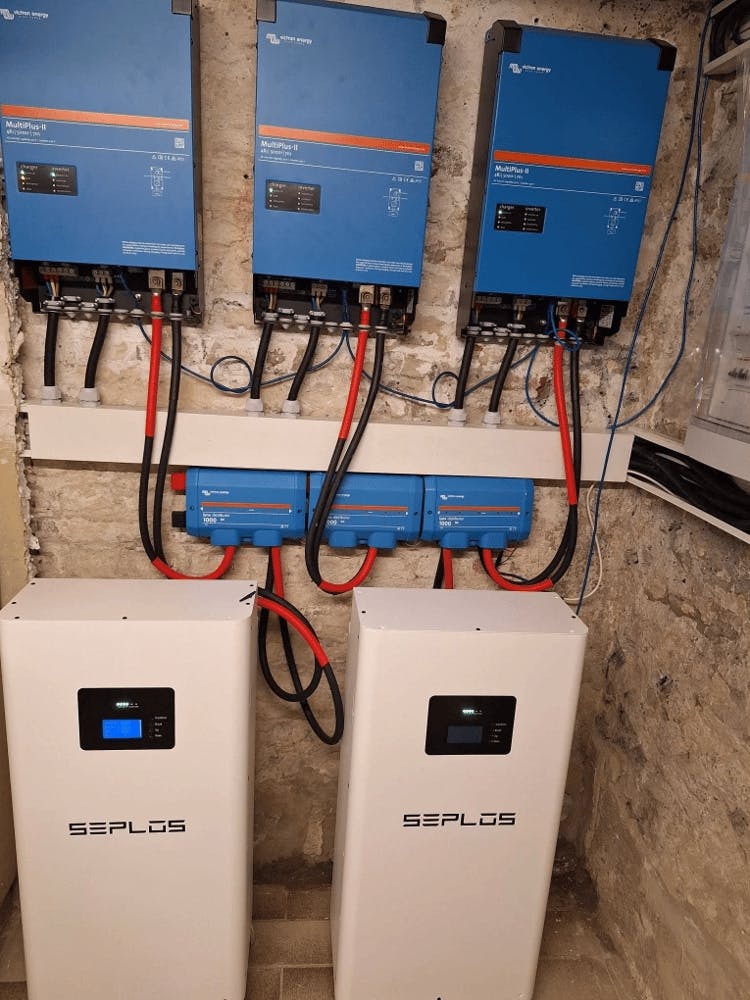

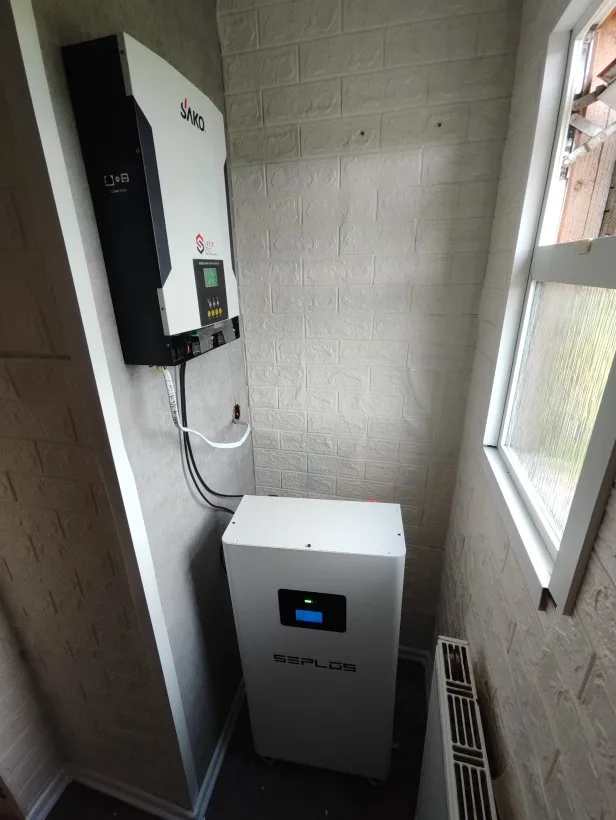

2pcs connect in parallel: as 48V 30kwh system, deye inverter.
Customer Reviews
All perfect, thank you.

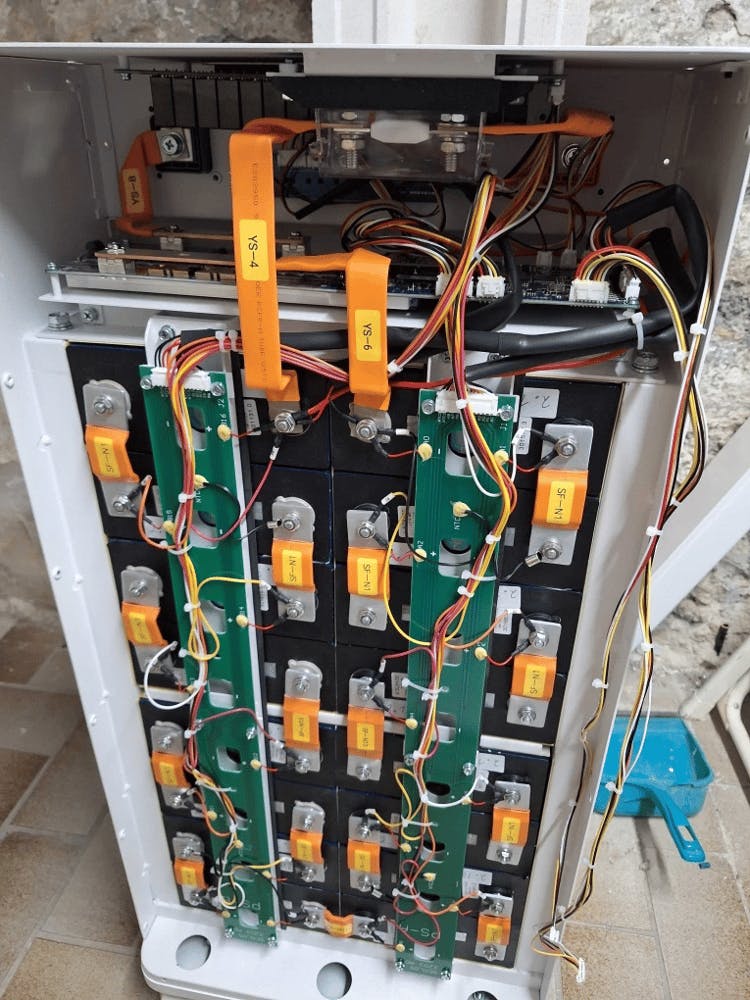

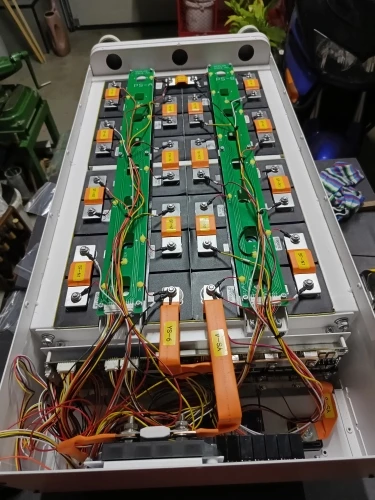

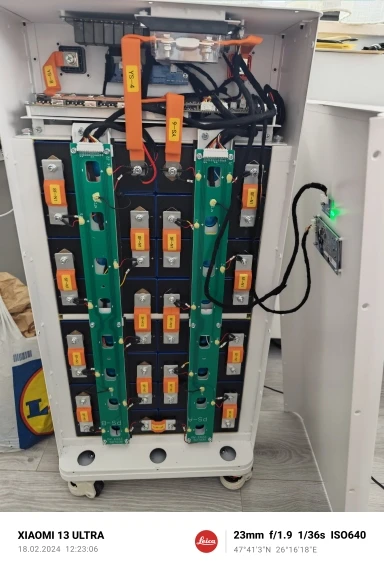

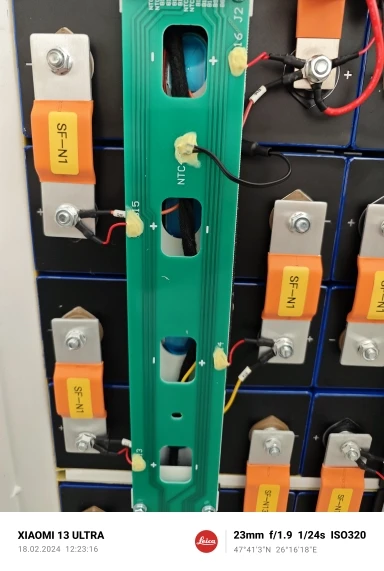

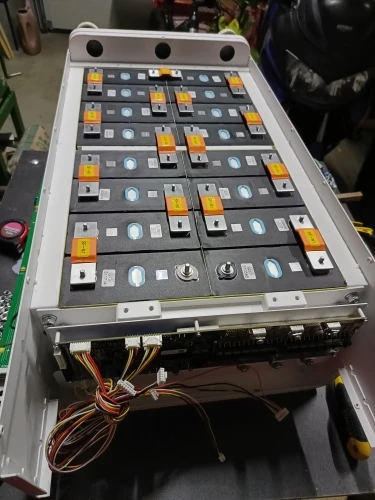

Build up the second one of the cases. The second one has the newer version of BM 3.0. There are differences in the Power Fets, Shunt resistors and the number of contacts for the Battery Power conection on the BMS Module (only two ones, the old version has three) The open one shows the new BMS Version of BMS 3.0. It's working fine with Victron battery control, BMS connection to Victron Cerbo not tested yet.
Das Produkt ist außer gewöhnlich, die Kommunikation mit dem Verkäufer ist sehr einfach und schnell, die Lieferung war sehr schnell und unter guten Bedingungen. Die Zufriedenheit ist maximal und weitere Referenzen werden hierher kommen.
