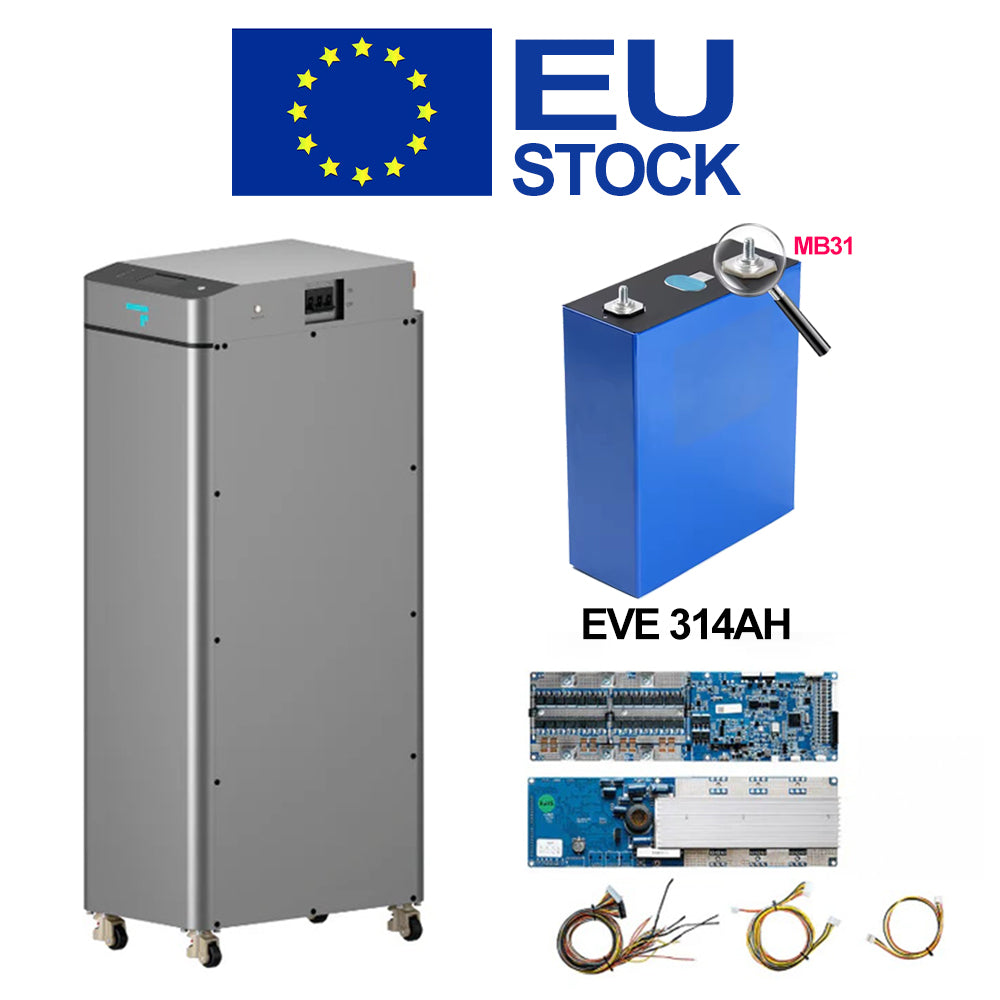

SEPLOS V4 Kit and x16 EVE 314ah MB31 Grade A+ Bundle--EU STOCK

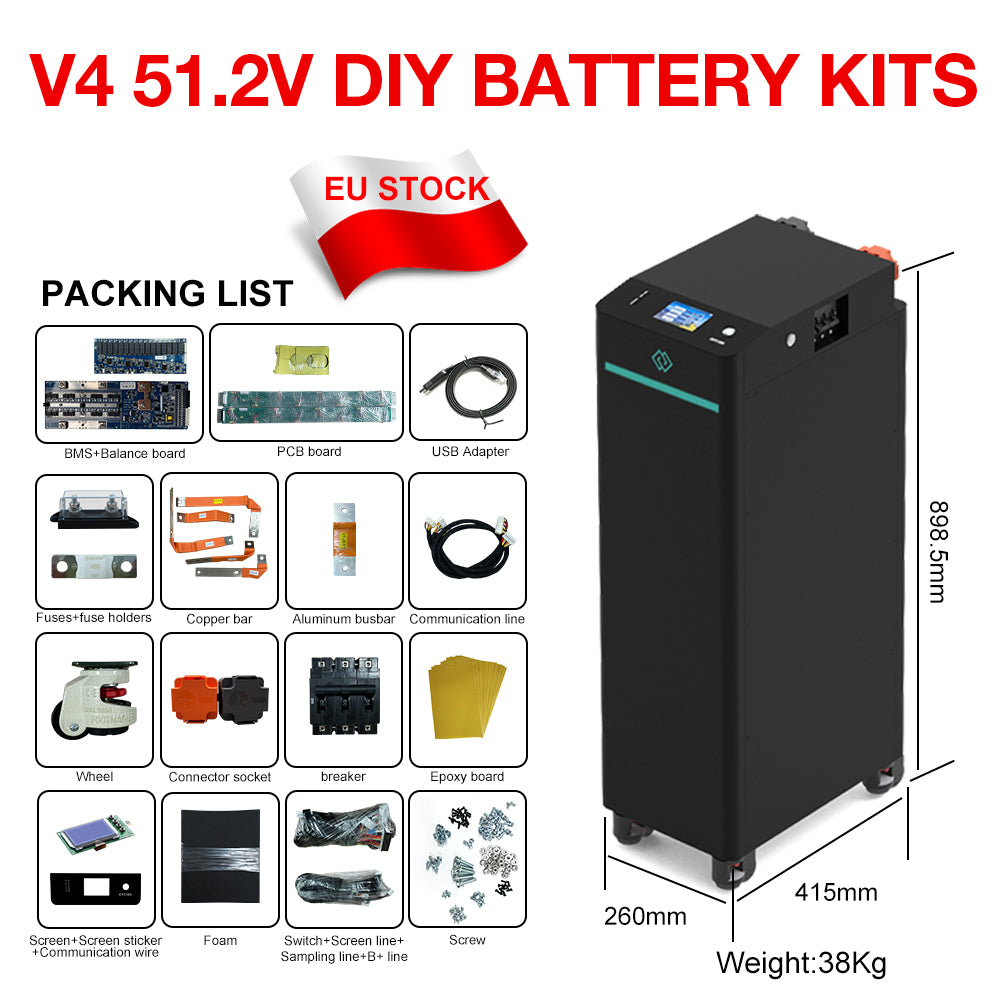

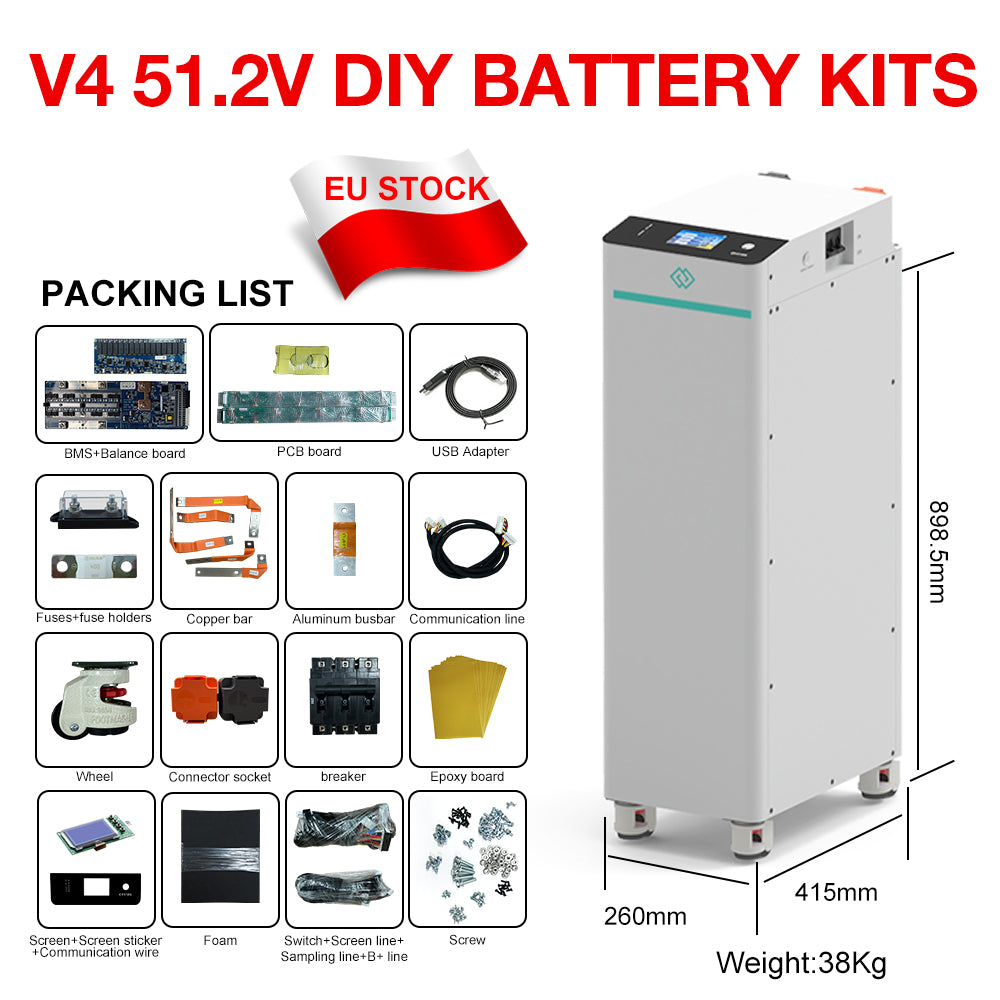

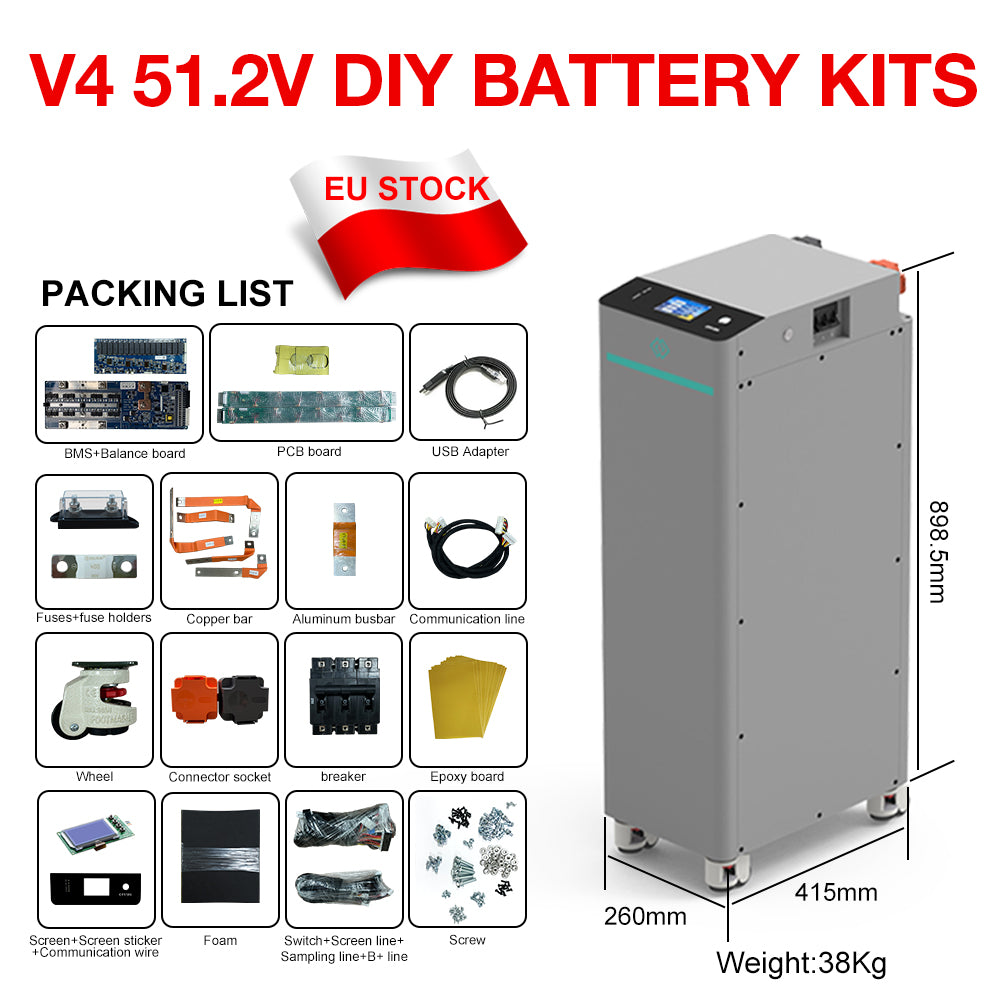

Customer assemble it by themselves, we will offer installation manual and video and others help if needed.

Seplos V4 updated. Available in EU warehouse now.

Updated: V4:

1. Touch Screen, the LCD with colorful touch screen, more beautiful and flexible.

2. Smaller size: for parallel 2-3-4 pcs, space saving a lot.

3. With 250A--UL certified DC BREAKER

4. Parallel wire connecting: the wire connecting changing.

5. Colorful: black/sliver grey / white to meet different various customers needs.

6. Support parallel with V3, dont worry if your exsit battery is V3.

7. Top of the body--LCD, easier to monitor and set the parameters.

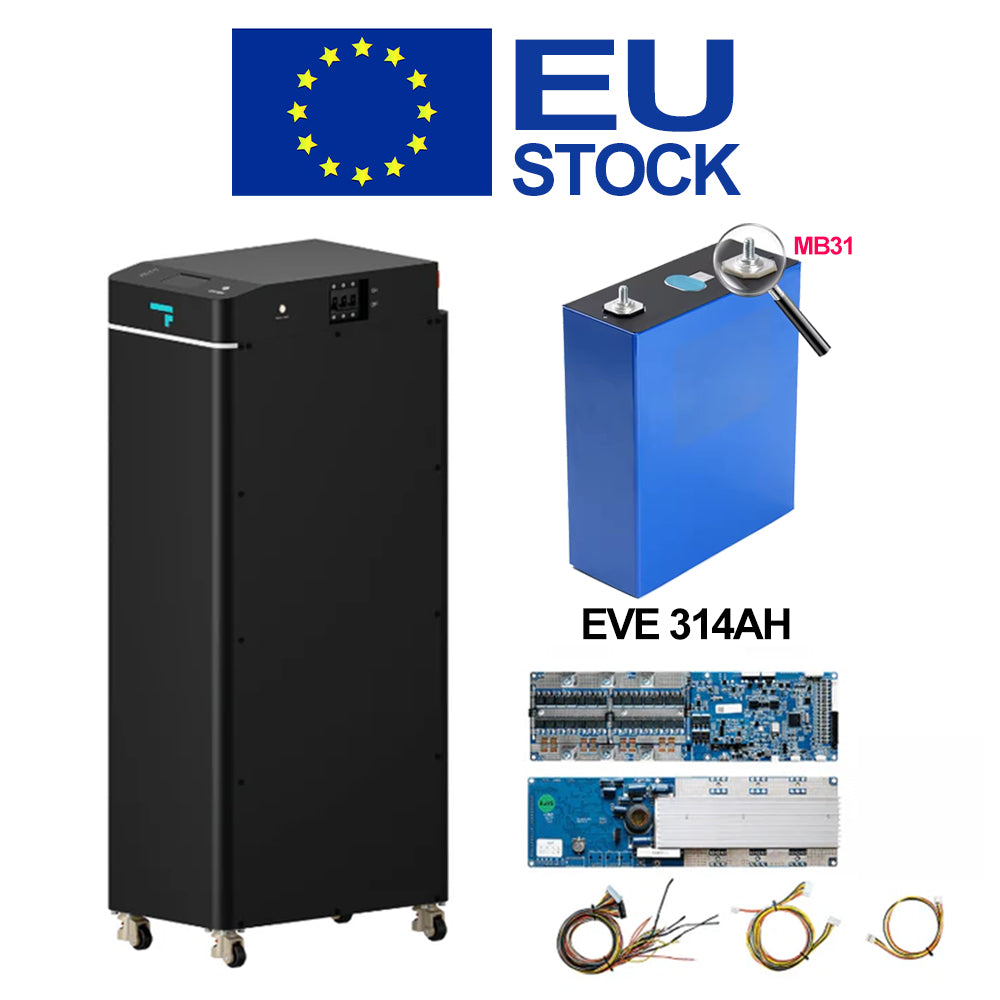

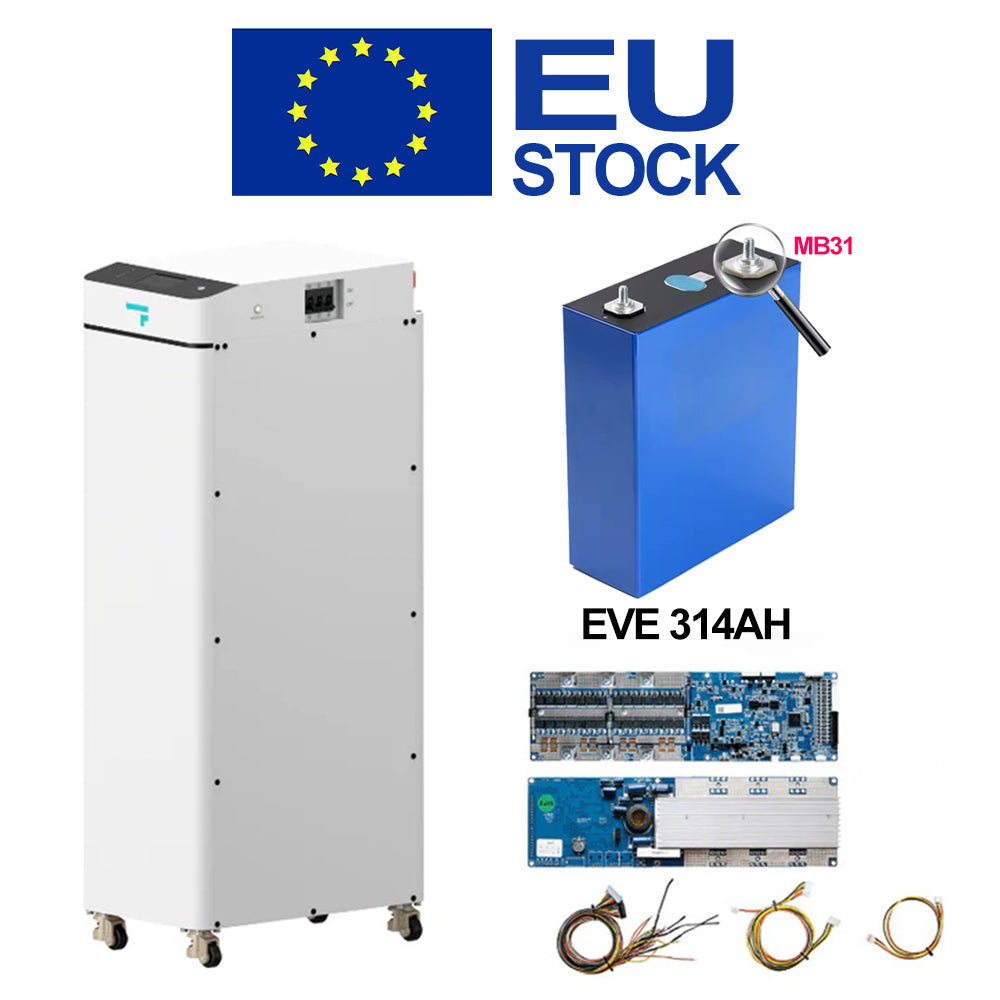

Colorful : BLACK/WHITE/SLIVER GREY

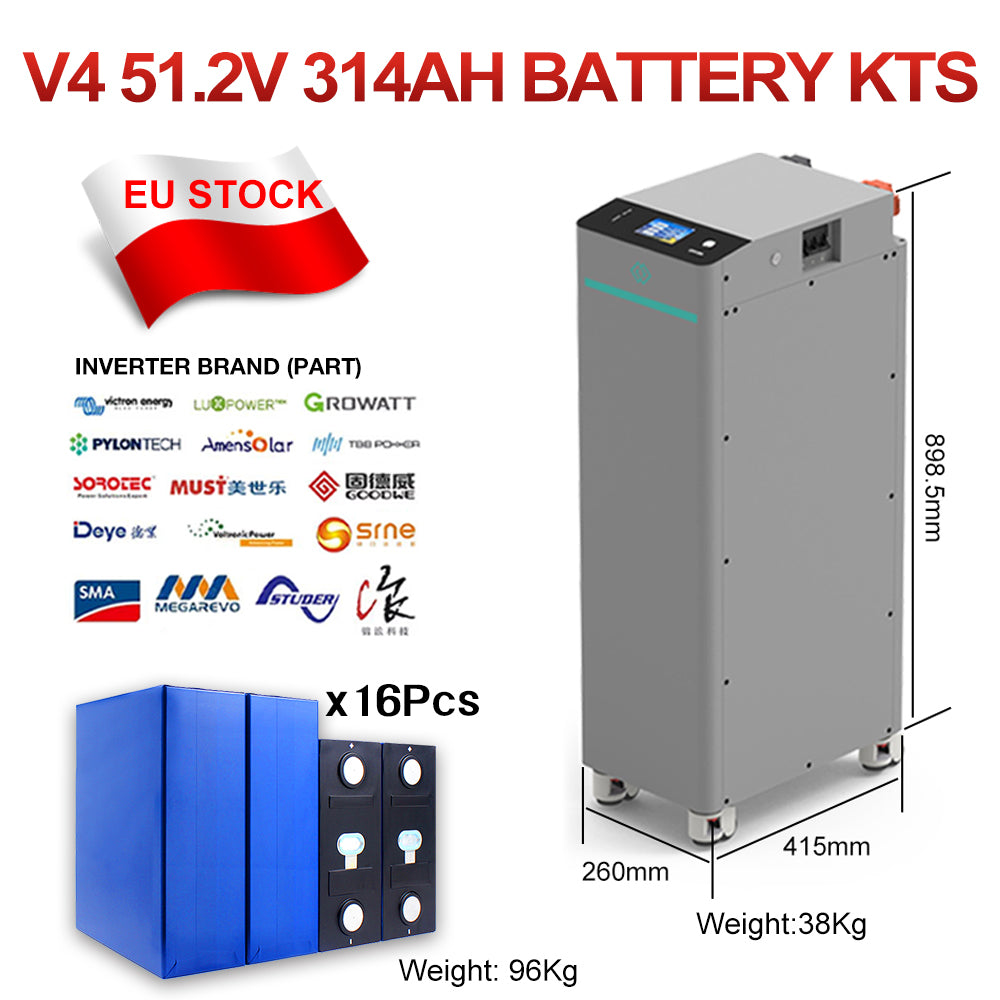

SEPLOS V4 Kit and x16 EVE 314ah MB31 Grade A+ Bundle--EU STOCK

Space saving a lot than others, below is a customer installation show:

3pcs connect in parallel for 48KWH pack, deye inverter.





Here is the size comparison between V3 and V4. It is clear that V4 takes up less space, helping customers save space.

The touch display is more sensitive, flexible, and visually appealing. The display is located directly on top of the device, allowing customers to adjust parameters while standing, which is more in line with ergonomic design.

If you build a battery pack, below is the battery pack infor.

Max for 16P, usual a house with 2-3pcs 15KWH, for 30-45KWH is enough  for a fmaily daily usage.

PROJECT	SPECIFICATIONS
Battery configuration	1P16S
Nominal Voltage	51.2V
Working voltage range	43.2V~58.4V
Rated Capacity	314Ah
Energy	15Kwh
Standard charging/ discharging current	100A/200A@25±2℃
Maximum charging current	200A@25±2℃
Maximum discharge current	200A@25±2℃
Working environment temperature	0~40℃(charge) -20~40℃(Discharge)
Storage temperature and humidity	-10℃~35℃(1 months)25±2℃(3 months)65%±20%RH

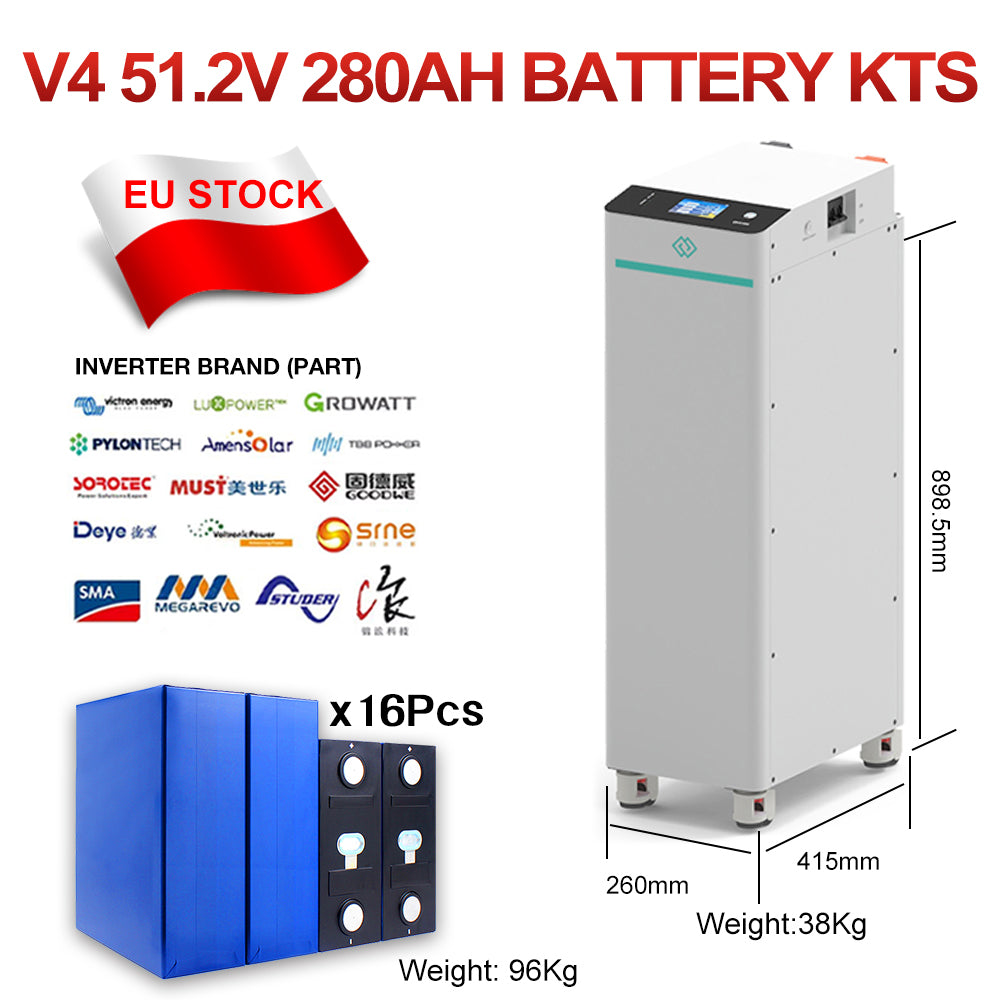

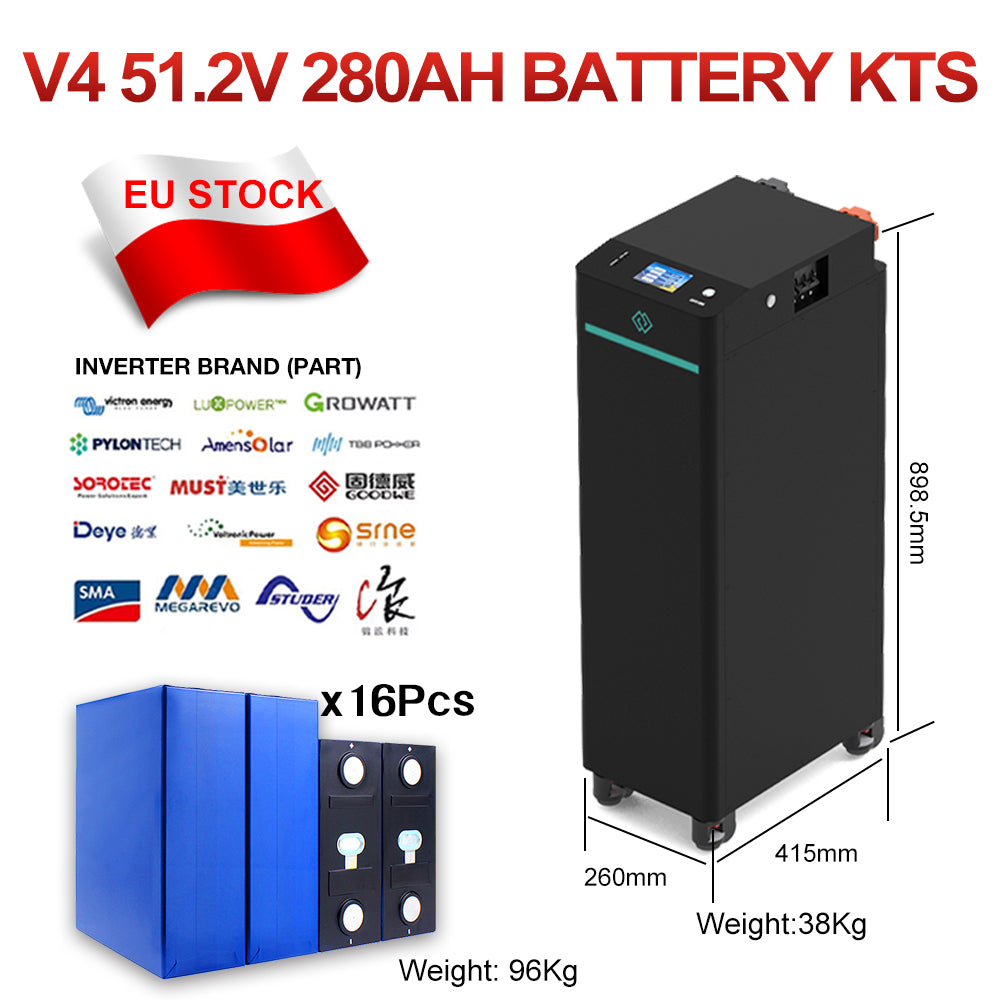

Dimension (LxWxH)	260*415*898.5mm
weight	135±3kg--battery pack, KITS--38KG
cycle life	8000cyels@25℃50A charge discharge current 80% DOD
IP level	IP20
Communication	CAN/RS485
Altitude	0-3000m
Humidity range	5-95%



Key Features:
⚡Modular Design: Expand your battery capacity effortlessly by connecting up to 16 additional packs in parallel.
⚡Customisable Options: Choose from popular cell suppliers like EVE and CATL to build a battery pack up to 16kWh in size (cells supplied separately).
⚡Smart BMS: The included V3 SEPLOS BMS (with Bluetooth) seamlessly integrates with various inverters (Victron, Growatt, Sofar, Solis, etc.) via CAN & RS485.
⚡Intuitive User Interface: Easily monitor battery status, charge/discharge rates, and system performance via the LCD colour screen.
⚡250A DC Breaker: Provides reliable protection and safeguards your battery system from excessive currents and short circuits.
⚡Active Balancing: Provides optimised cell performance and ensures balanced charging and discharging among individual cells.



In stock in Poland warehouse for 3 different color option.

Communicate with most of main inverters, such as DEYE, GROWATT, Victron..
