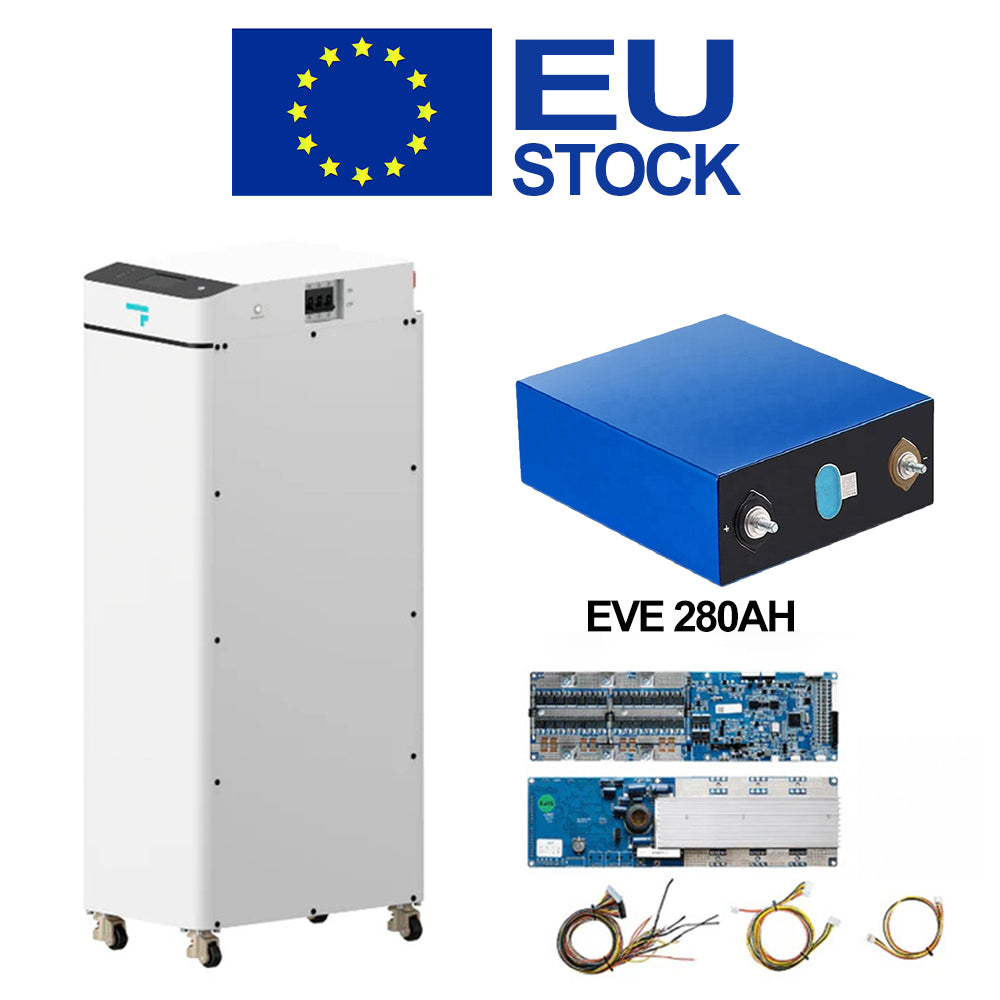

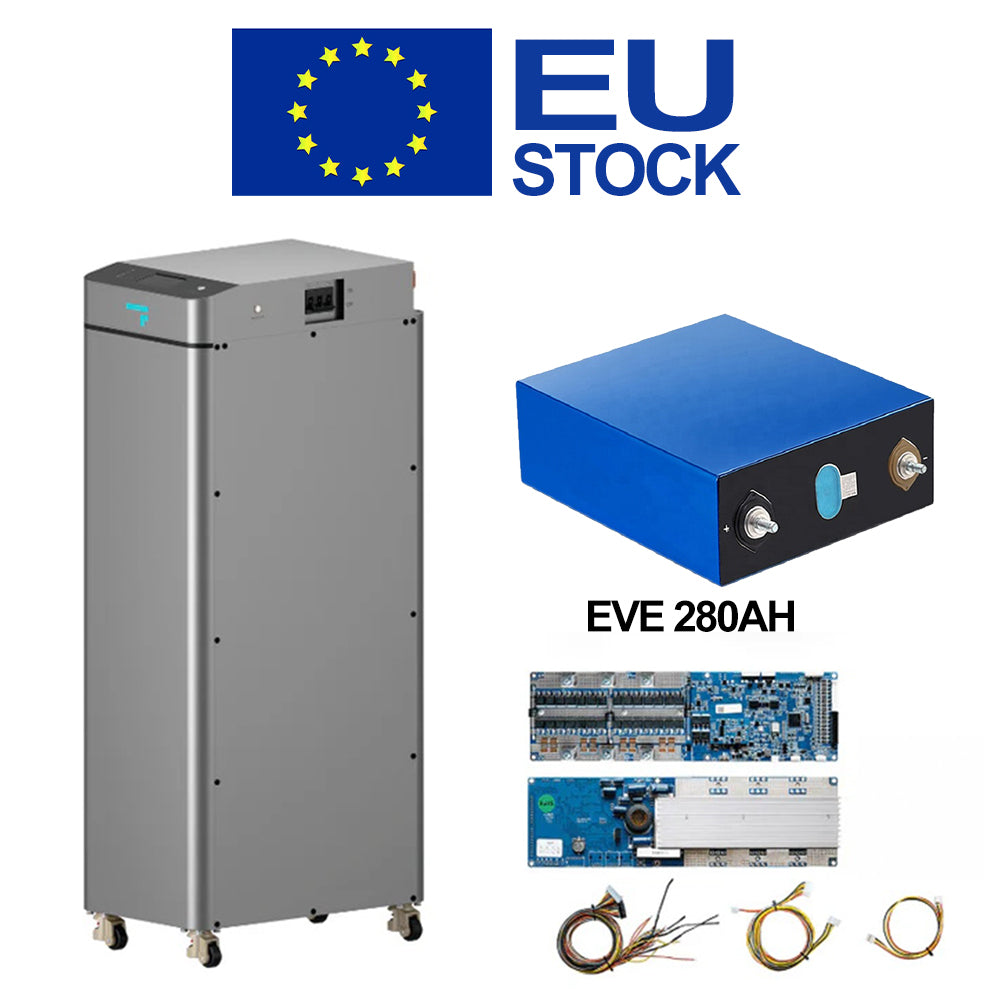

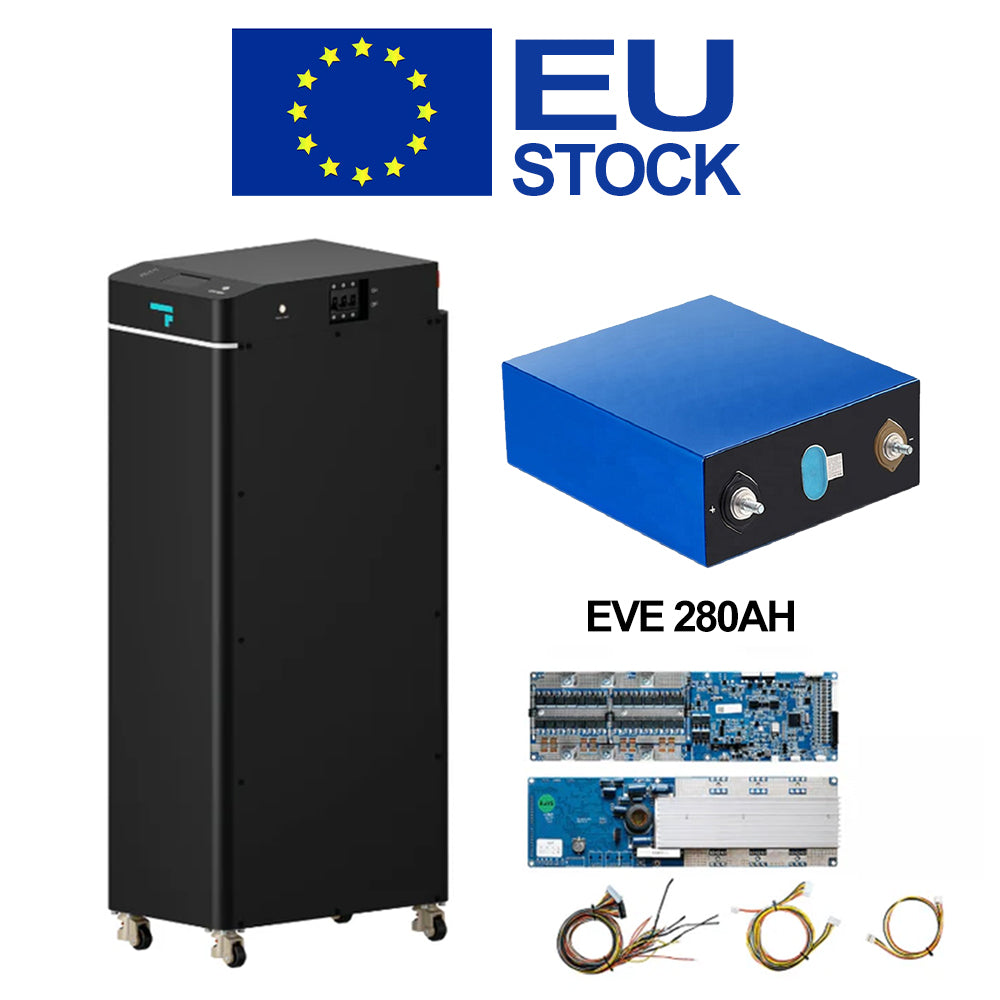

SEPLOS V4 Kit and x16 EVE 280AH LF280K Grade A+ Bundle--EU STOCK
SEPLOS V4 Kit and x16 EVE 280AH LF280K Grade A+ Bundle--EU STOCK
Couldn't load pickup availability
Seplos V4 updated. Available in EU warehouse now.
Updated: V4:
1. Touch Screen, the LCD with colorful touch screen, more beautiful and flexible.
2. Smaller size: for parallel 2-3-4 pcs, space saving a lot.
3. With 250A--UL certified DC BREAKER
4. Parallel wire connecting: the wire connecting changing.
5. Colorful: black/sliver grey / white to meet different various customers needs.
6. Support parallel with V3, dont worry if your exsit battery is V3.
7. Top of the body--LCD, easier to monitor and set the parameters.
Colorful : BLACK/WHITE/SLIVER GREY
SEPLOS V4 Kit and x16 EVE 280AH LF280K Grade A+ Bundle--EU STOCK
If you build a battery pack, below is the battery pack infor.
Max for 16P, usual a house with 2-3pcs 15KWH, for 30-45KWH is enough for a fmaily daily usage.
|
PROJECT
|
SPECIFICATIONS
|
|
Battery configuration
|
1P16S
|
|
Nominal Voltage
|
51.2V
|
|
Working voltage range
|
43.2V~58.4V
|
|
Rated Capacity
|
280Ah
|
|
Energy
|
15Kwh
|
|
Standard charging/ discharging current
|
100A/200A@25±2℃
|
|
Maximum charging current
|
200A@25±2℃
|
|
Maximum discharge current
|
200A@25±2℃
|
|
Working environment temperature
|
0~40℃(charge) -20~40℃(Discharge)
|
|
Storage temperature and humidity
|
-10℃~35℃(1 months)25±2℃(3 months)65%±20%RH
|
|
Dimension (LxWxH)
|
260*415*898.5mm
|
|
weight
|
135±3kg--battery pack, KITS--38KG
|
|
cycle life
|
8000cyels@25℃50A charge discharge current 80% DOD
|
|
IP level
|
IP20
|
|
Communication
|
CAN/RS485
|
|
Altitude
|
0-3000m
|
|
Humidity range
|
5-95%
|
In stock in Poland warehouse for 3 different color option.
Comunicate with most of main inverters, such as DEYE, GROWATT, Victron..
